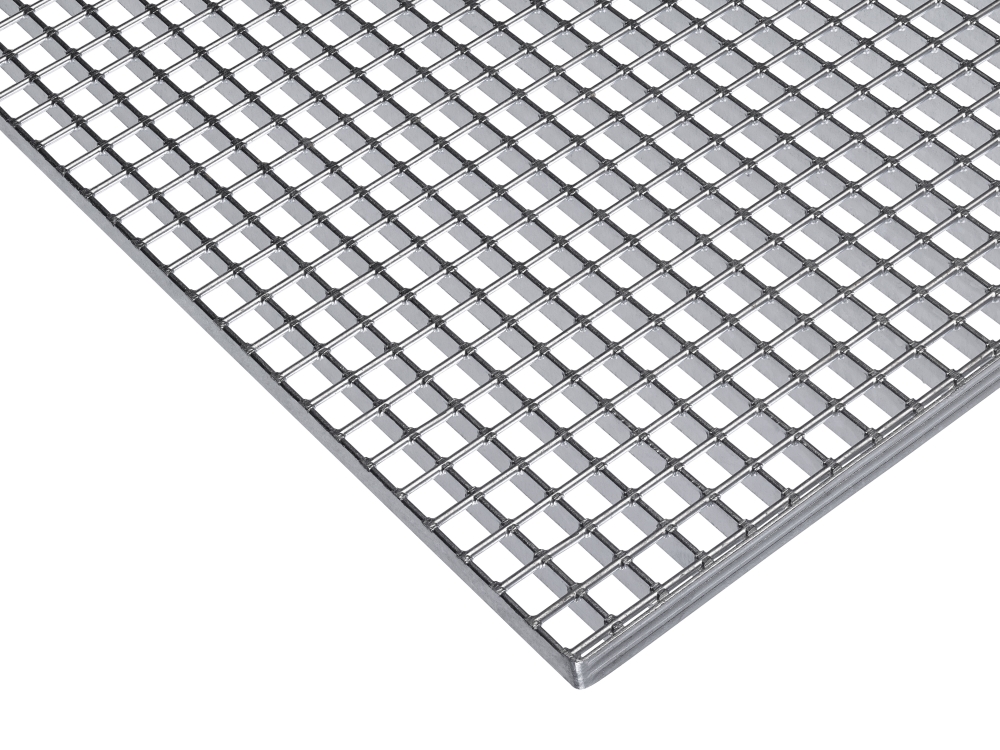

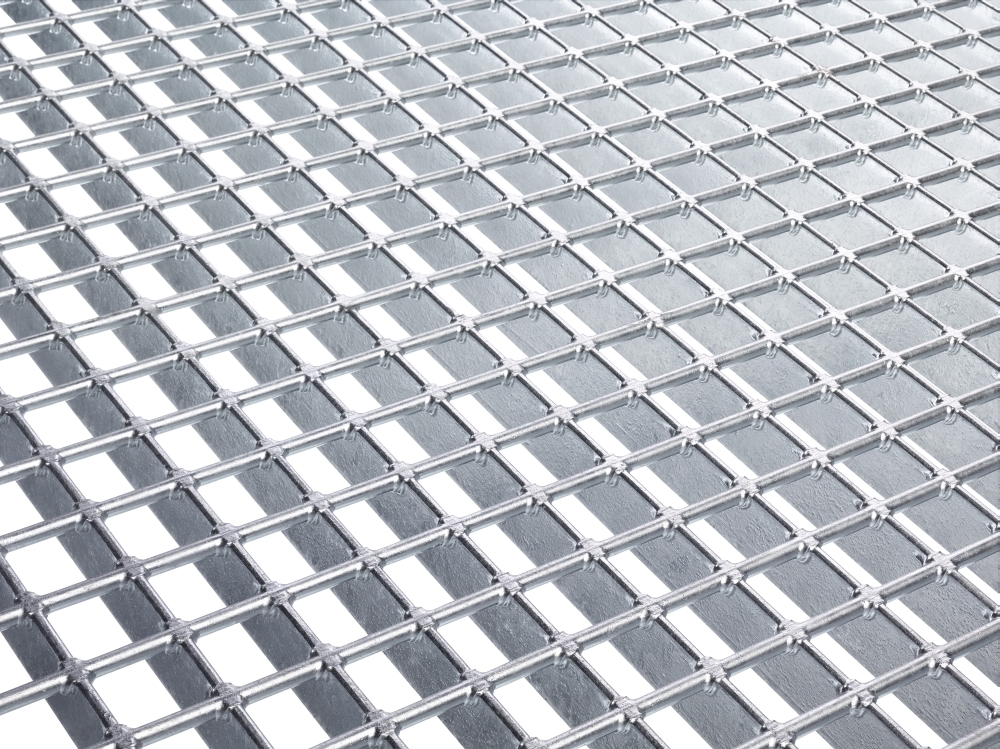

Forge-welded gratings with round cross bars
In individual cases, it may be advantageous that the cross bar is not twisted as in the standard version, but is used in round design. For these applications, specially shaped round bars are homogeneously pressed into the bearing bars and welded.
The use of round bars reduces the adhesive or sliding friction so that a desired "sliding" is created. Such special gratings are found, e.g. in shelving systems, on park benches or in façade applications.
Characteristics
- Absorption of high horizontal forces by pressing and welding of all intersection points
- High resistance
- High bearing capacity, because bearing bars are not weakened by welding of cross bars
- Good torsional rigidity even with subsequently introduced cut-outs - maintenance of the homogeneous unit
All characteistics can be combined. Please contact us to check the producibility of the gratings. Our sales department is always at your disposal.
If a serration class > R10 is required, the bearing bars of the gratings can be punched on the upper side in a special process.
| Bearing bar pitch | Cross bar pitch | |
|---|---|---|
| 16,66 mm | 18,40 mm | |
| 21,64 mm | 19,00 mm | |
| 23,69 mm | 23,40 mm | |
| 24,85 mm | 24,00 mm | |
| 30,16 mm | 38,10 mm | |
| 33,17 mm | 50,80 mm | |
| 34,33 mm | 76,20 mm | |
| 41,46 mm | 101,60 mm |
| Bearing bar thickness | Bearing bar height | |
|---|---|---|
| 2 mm | 25 mm | |
| 3 mm | 30 mm | |
| 4 mm | 40 mm | |
| 5 mm | 45 mm | |
| 50 mm |
Fixing material B334 / B351K
Fixing Material B334 / B351K
for forge-welded gratings with locking. Consisting of:
- Clamp upper part
- Bolt, nut and plastic locking ring
Bolt length at least grating height plus 40 mm.
This fastening material prevents a slippage of the grating from the substructure even when the bolt is loosened and can be mounted from above.
Threaded bolt fixing B433T
Threaded bolt fixing B433T
Consisting of:
- Round plate top with firmly conected threaded sleeve made of brass or aluminium
- Setting bolt
This fixing unit is also available compeletely in stainless steel. .
This fixing material prevents a slippage of the grating from the substructure even when the bolt is loosened and can be mounted from above. This fastening fits mesh spacing ranging from approx. 25 to 40 mm.
Welded bolt fixing B533K
Welded bolt fixing B533K
Consisting of:
- Clamp upper part deep drawn (on request with deep drawn plate)
- Welded studs galvanized including ceramic ring
- Nut and plastic locking ring
This fixing material prevents a slippage of the grating from the substructure even when the bolt is loosened and can b emounted from above.
This fixing fits mesh spacing ranging from approx. 25 to 40 mm.
Clamp upper part XOK133
Clamp upper part XOK133
Consisting of:
- Clamp upper part XOK 133 as an individual part for a direct mount
As a connecting element on site, metric or self-tapping screws are to be used.
Fixing with perforated plates B270
Fixing with perforated plates B270
Consisting of:
- welded perforated plate
Screw fixing on site.
This fixing material is particularly suitable for vehicle-accessible gratings.
Standard fixing material B133T and B133K
Standard fixing material B133T and B133K
Consisting of:
- Clamp upper part or round plate top
- Clamp lower part
- Bolt, nut and plastic locking ring
This fixing is also available in stainless steel. Order no. B132K. Bolt length at least grating height plus 30 mm.
This fixing material can be mounted from above from a mesh spacing of 33 mm and is - if desired - available with raised sill flap. Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Hook bolt fixing B733T and B733K
Hook bolt fixing B733T und B733K
Consisting of:
- Clamp upper part or round plate top
- Hook bolt, fitted to the substructure
- Bolt M8 x 90, nut and plastic locking ring
The profile of the substructure must be specified. This fixing naterial can be assembled from above.
Hook bolt fixing B833T and B833K
Hook bolt fixing B833T and B833K
Consisting of:
- Clamp upper part or round plate top
- Hook bolt, fitted to the substructure
- Bolt M8 x 90, nut and plastic locking ring
The profile of the substructure must be specified. This fixing material can be assembled from above.
Double clamp fixing B933T and B933K
Double clamp fixing B933T and B933K
Consisting of:
- Clamp upper part or round plate top
- Clamp lower part - bolt, nut and plastic locking ring
Bolt length at least grating height plus 30 mm. The double clamping connection connects adjacent gratings in places that are prone to greater defelctions. It prevents the occurrence of tripping hazards.
Plastic locking ring
Plastic locking ring
leads to an improvement of bolt connection.
Safety hook / Fixing B11
Safety hook / Fixing B11
Consisting of:
- Safety hook with threaded end of stainless steel
- Stainless steel nut
- Screw anchor including plastic anchor plugs
Sicherungskette / Befestigungsmaterial B12.1
Safety chain / Fixing B12.1
Consisiting of:
- Securing chain, 500 to 1000 mm
- Screw anchor including plastic anchor plugs
Socket spanner lock / Fixing B13
Socket spanner lock / Fixing B13
Fixing B13.1
with square box spanner 7 including facing brackets. Version B13.1 can be operated from above and from below. (illustration: closed from above)
Fixing B13.2
with square box spanner 8 including facing bracket (also for heavy-duty gratings). This version is available in galvanized steel and stainless steel.
Fixing B13.3
with square box spanner 8 can be bolted on to grating in subsequent installation. Suitable for gratings with a mesh spacing of 33,33 mm and grating height of 25, 30 and 40 mm.
Special socket spanner B14
Special socket spanner B14
Fixing B14.1
with inside square for socket spanner closure No. 13.1 with square box spanner 7.
Fixing B14.2
with inside square for socket spanner closure No. 13.2 and 13.3 with square bos spanner 8.
Hinge B15
Hinge B15
Consisting of:
- 2 hinges and 1 hinge bolt
- U-waschers
- 2 split pins
Heavy hinge versions for vehicle-accesible gratings on request. The hinges are welded flush with the upper edge of the grating at an opening angle of approx. 90°. Larger opening angle can lead to a protuberance of the hinge.
