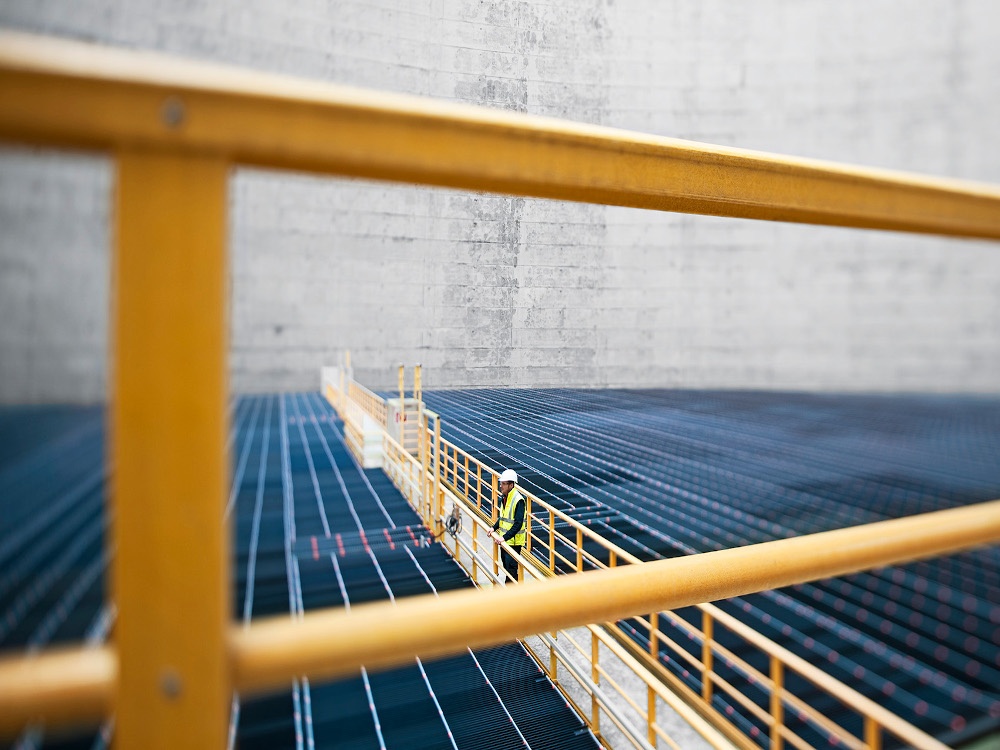

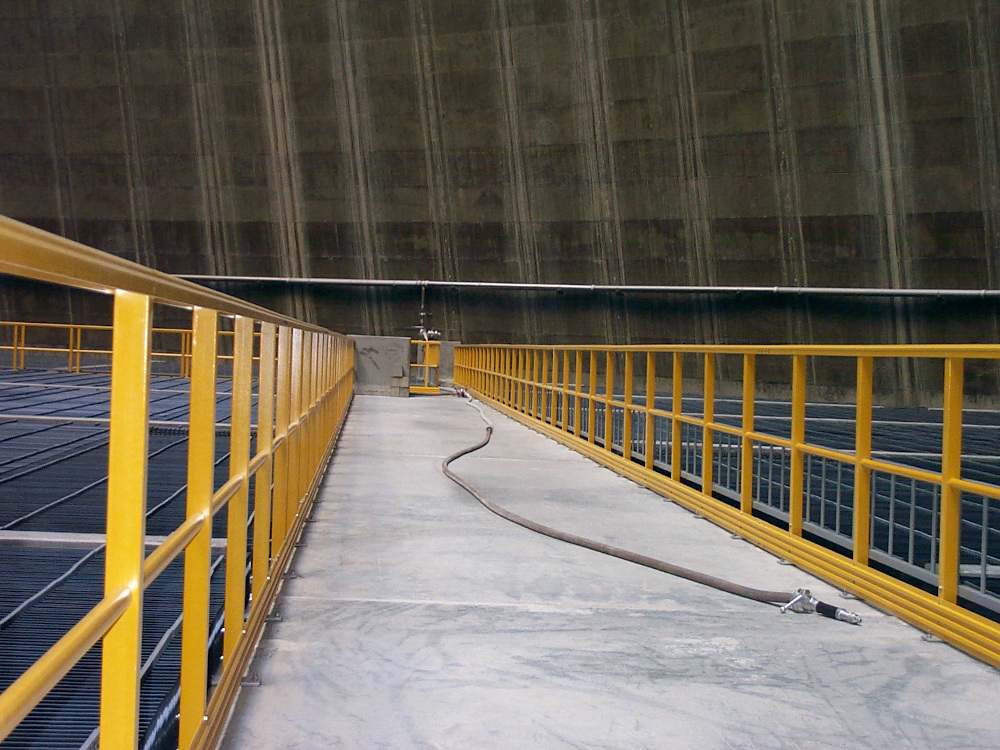

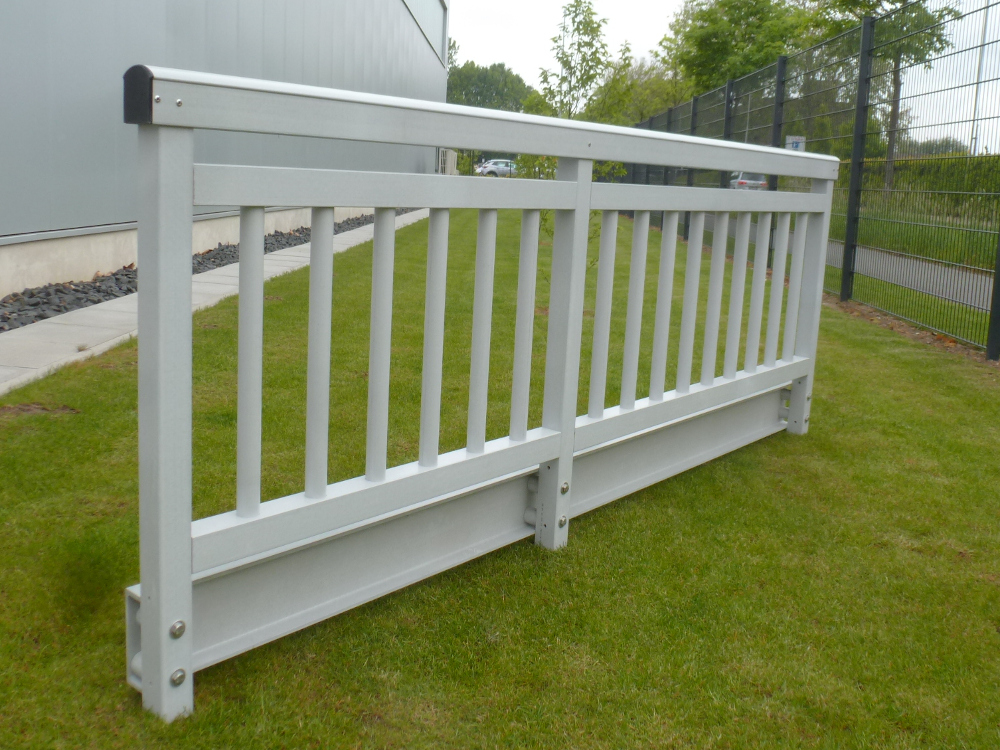

GRP-Railings
Lichtgitter GRP-Railings are manufactured from glass fibre reinforced GRP-Profiles. These are characterised by their good chemical resistance. A square tube is used as post, the knee rail consists of a round tube, the handrail is ergonomically shaped and the toe plate can be made in 100 or 150 mm height. Based on the existing profiles, the railings can be customized.
The railings are delivered completely preassembled or in individual parts where the posts are cutted and drilled. The kneerails, handrail and toe plate are supplied in standard lengths for on-site adaptation.
Characteristics
- Construction acc. to EN ISO14122-3
- good chemical resistance
- low tare weightt
- adaptable
- standard colour grey similiar to RAL7035
- Fire class B2
GRP-Round tube-Profile
| Profile | Type | Height mm | Width mm | Thickness mm | Thickness in mm | Weight kg/m | on stock |
|---|---|---|---|---|---|---|---|
| VR50x50x5 | Square tube | 50 | 50 | 5 | 5 | 1,63 | X |
| VR60x60x5 | Square tube | 60 | 60 | 5 | 5 | 2 | X |
| VR70x70x5 | Square tube | 70 | 70 | 5 | 5 | 2,52 | |
| VR100x100x8 | Square tube | 100 | 100 | 8 | 8 | 5,32 | |
| RR40x3 | Round tube | 40 | 3 | 0,63 | X | ||
| RR40x5 | Round tube | 40 | 5 | 1,07 | |||
| RR48x3 | Round tube | 48 | 3 | 0,76 | |||
| RR48x5 | Round tube | 48 | 5 | 1,33 | |||
| FL100x15 | Kick plate | 100 | 15 | 0,56 | X | ||
| HL64x70x5x5 | Handrail | 64 | 70 | 5 | 5 | 1,76 | |
| HL70x60x5x5 | Handrail | 70 | 60 | 5 | 5 | 0,38 | |
| HL77x84x5x5 | Handrail | 77 | 84 | 5 | 5 | 2,15 | |
| HL80x80x7x7 | Handrail | 80 | 80 | 7 | 7 | 1,31 | X |
| HL85x94x5x5 | Handrail | 85 | 94 | 5 | 5 | 2,42 | |
| HL120x145x8x8 | Handrail | 120 | 145 | 8 | 8 | 6,24 | |
| HL120x180x8x8 | Handrail | 120 | 180 | 8 | 8 | 6,78 |

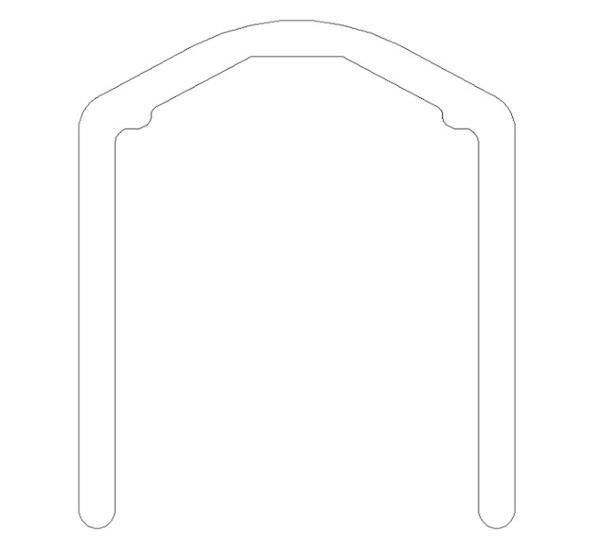

GRP-Handrail HL70x60x5x5
GRP-Handrail HL70x60x5x5
Characteristics:
- Standard colour grey, similar to RAL7035
- Standard length á 6.000 mm

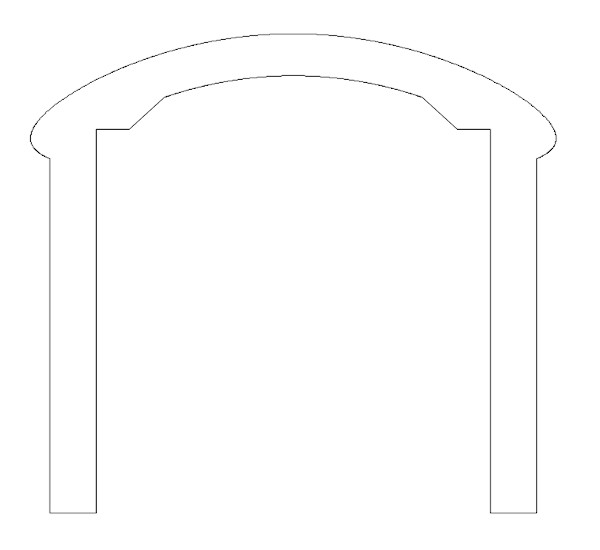

GRP-Handrail HL80x80x7x7
GRP-Handrail HL80x80x7x7
Characteristics:
- Standard colour grey, similar to RAL7035
- Standard length á 6.000 mm

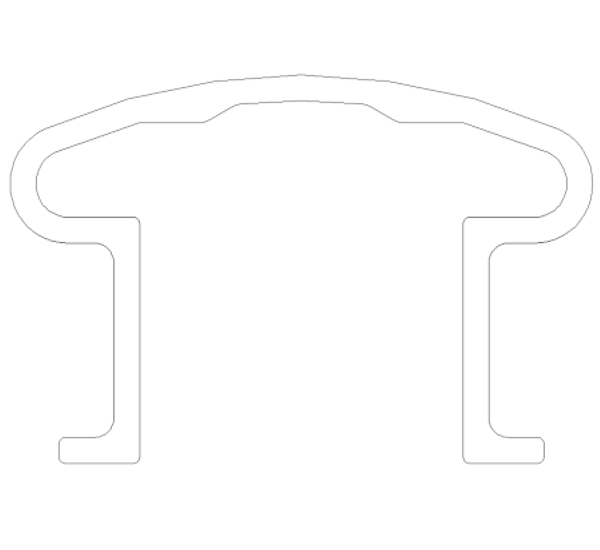

GRP-Handrail HL120x180x8x8
GRP-Handrail HL120x180x8x8
Characteristics:
- Standard colour grey, similar to RAL7035
- Standard length á 6.000 mm

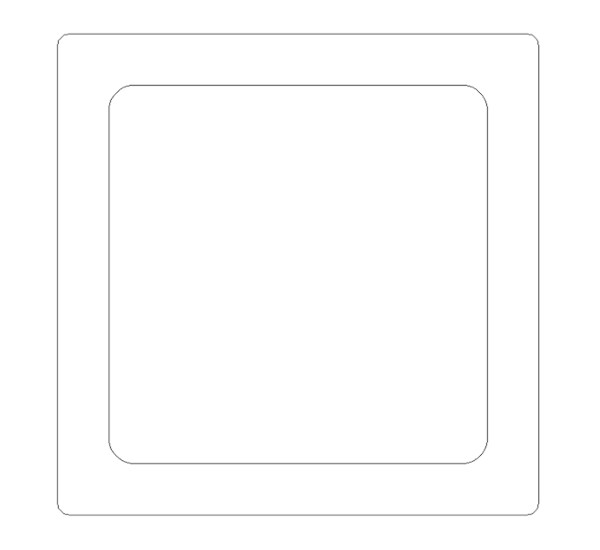

GRP-Square tube (VR)
GRP-Square tube (VR) for posts
Characteristics:
- Standard colour grey, similar to RAL7035
- Standard length á 6.000 mm
Often used posts are VR50x50x5, VR60x60x5

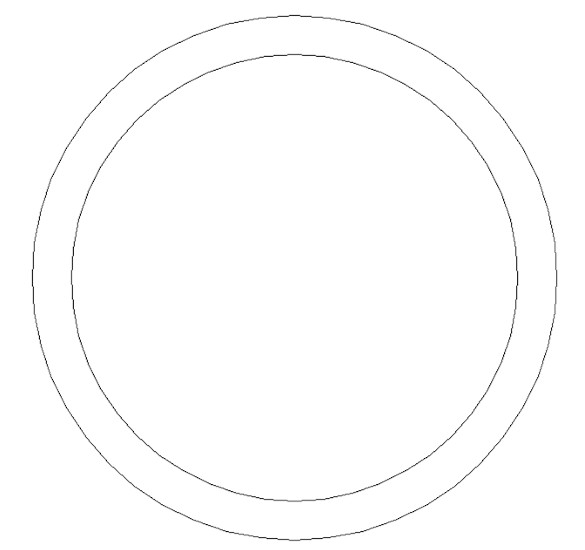

GRP-Round tube RR40x3
GRP-Round tube RR40x3 or kneerail
Characteristics:
- Standard colour grey, similar to RAL7035
- Standard length á 6.000 mm

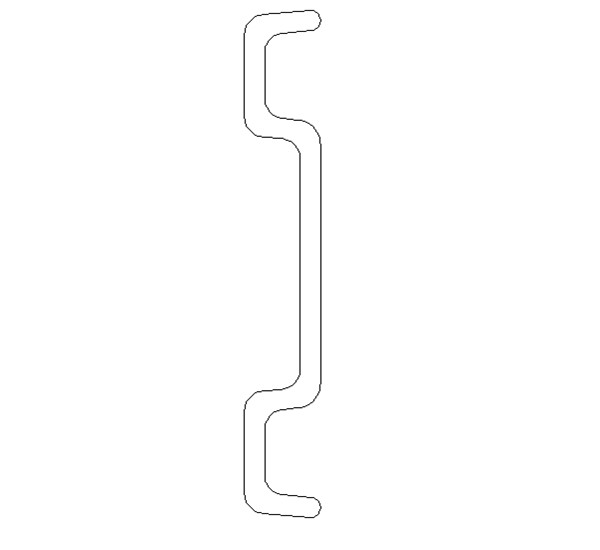

GRP-Kick plate 100x15x4
GRP-Kick plate 100x15x4
Characteristics:
- Standard clour grey, similar to RAL7035
- Standard length á 6.000 mm

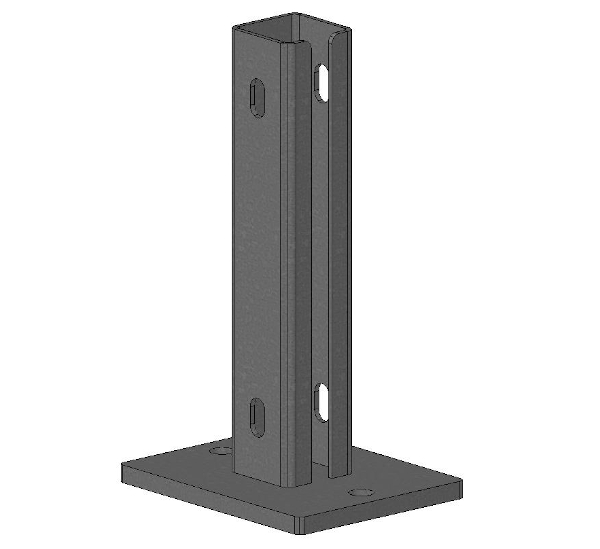

Post feet for GRP-Handrails
Post feet for GRP-Handrails
to screw onto a substructure or on a concrete floor
Consisting of:
- canted squaretube with drilling holes
- footplate with drillings
The post feets will be produced according to the choosen posttype. The postfeet for the square profile 60x60x5 mm are available from stock in stainless steel V4A but can be produced also in galvanized steel.

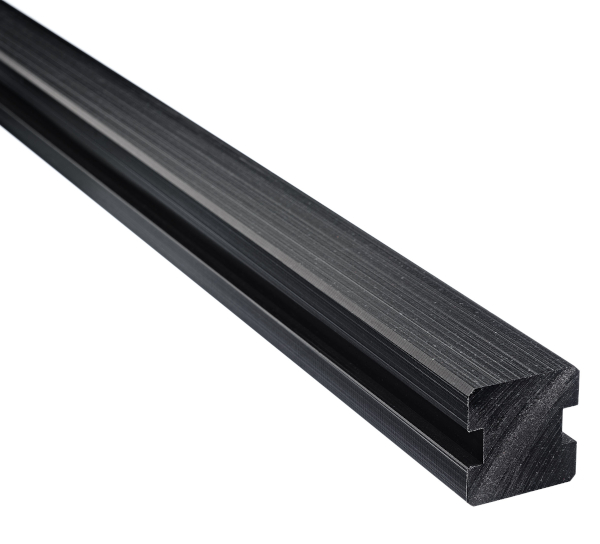

PE-Core
PE-Core for GRP-Squaretube
for strengthening the GRP-Squaretubes in the area of the screwed connection. It will be used for example for mounting a GRP-Railing lateral to the substructure.
made of:
- Polyethylen
- with drainage groove for water

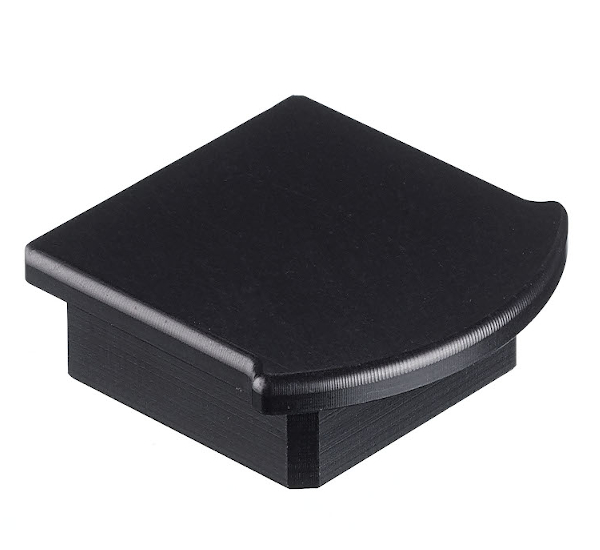

End cap for Handrails
Endcap for Handrails
for closing the Handrails
made of:
- Polyethylen
The Endcap for the Handrail HL80x80x7mm is available ex stock other executions after agreement

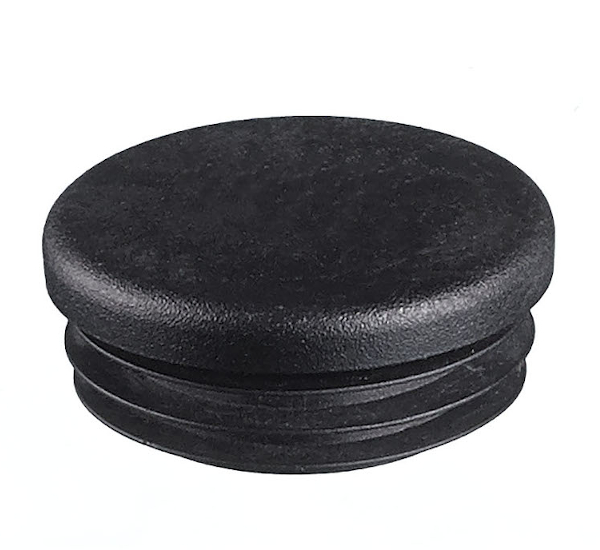

End cap for Kneerail
Endcap for Kneerail
for closing GRP-Roundtubes.
made of:
- Polyethylen

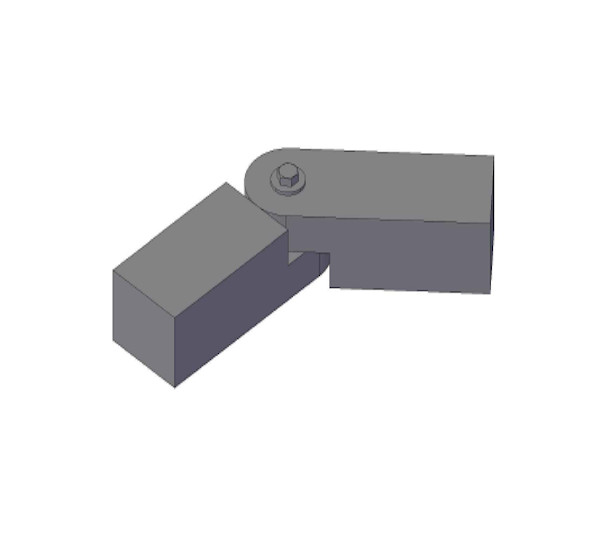

Handrailedgeconector - flexible
Handrailedgeconnector - flexible
for stiffening and connecting of GRP-Handrails at edges or for execution of a slope.
made of:
- 2 x PE-Edgeconnector - fixed with stainless steel screws

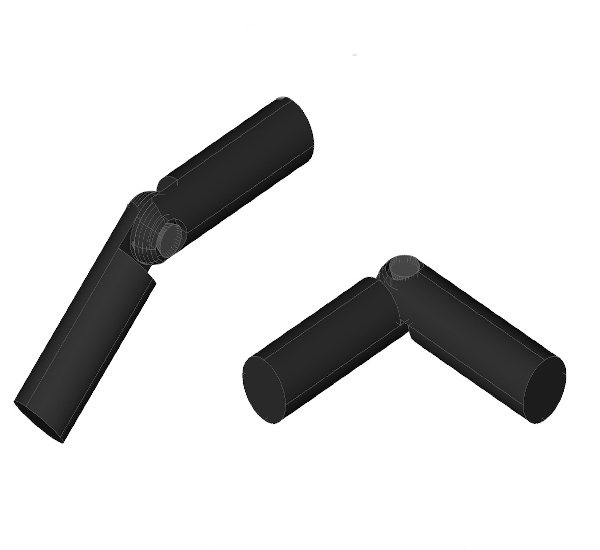

Kneerailedgeconnector - flexible
Kneerailedgeconnector - flexible
for stiffening and connecting of GRP-Kneerails/Tubes at edges or for execution of a slope.
- 2 x PE-roundbars - fixed with stainless steel screws

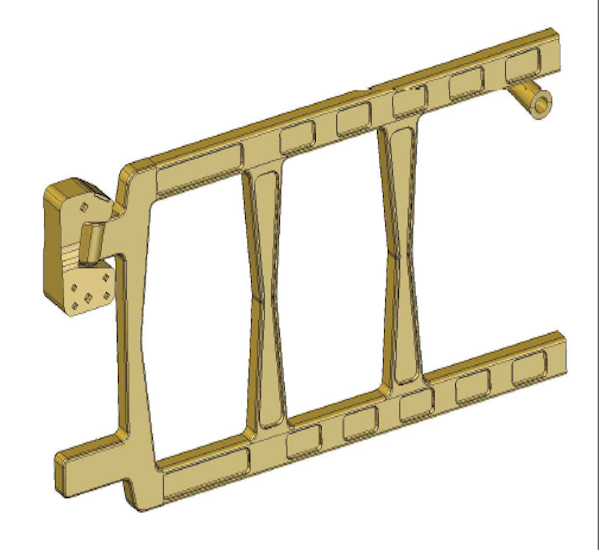

Safety Gate
Selfclosing Safety Gates
produced on basis of an high grade Polyurethane-hergestellt auf Basis eines hochwertigen Polyurethan-plastic material.
consisting of:
- 1 x Hingeplate two-sided applicable
- 1 x Safety Gate min. 560 mm opening max. 950 mm opening
- 1 x Mounting Kit for fixation of the Hingeplate
Please let us know the requested width of the passage in your inquiry.
