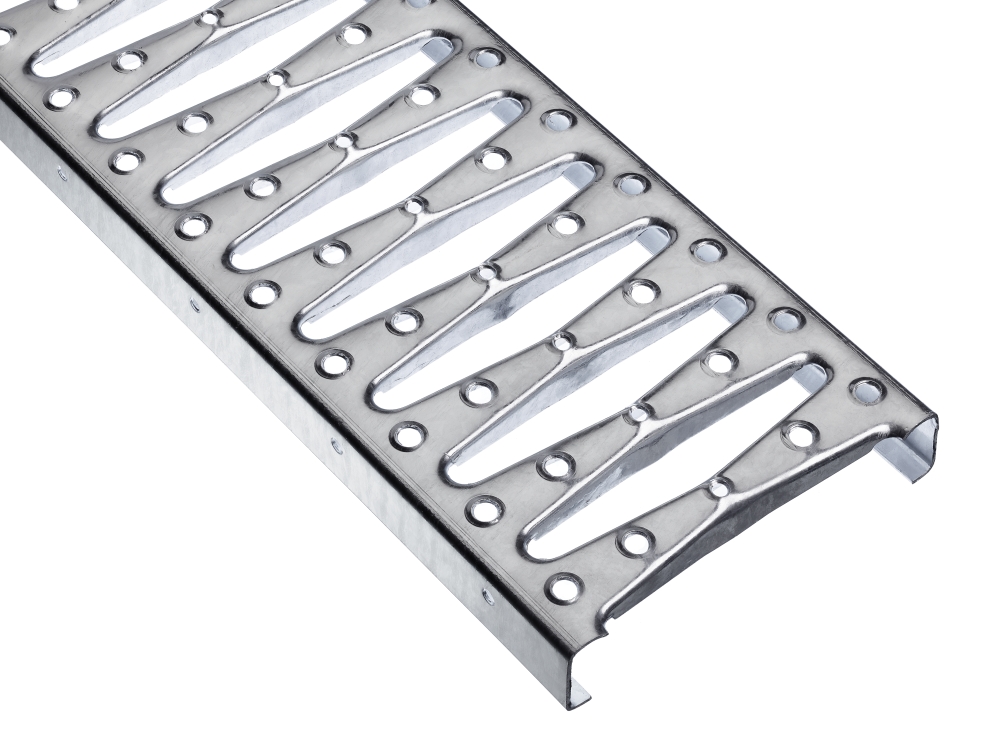

Perforated metal plank Type BR

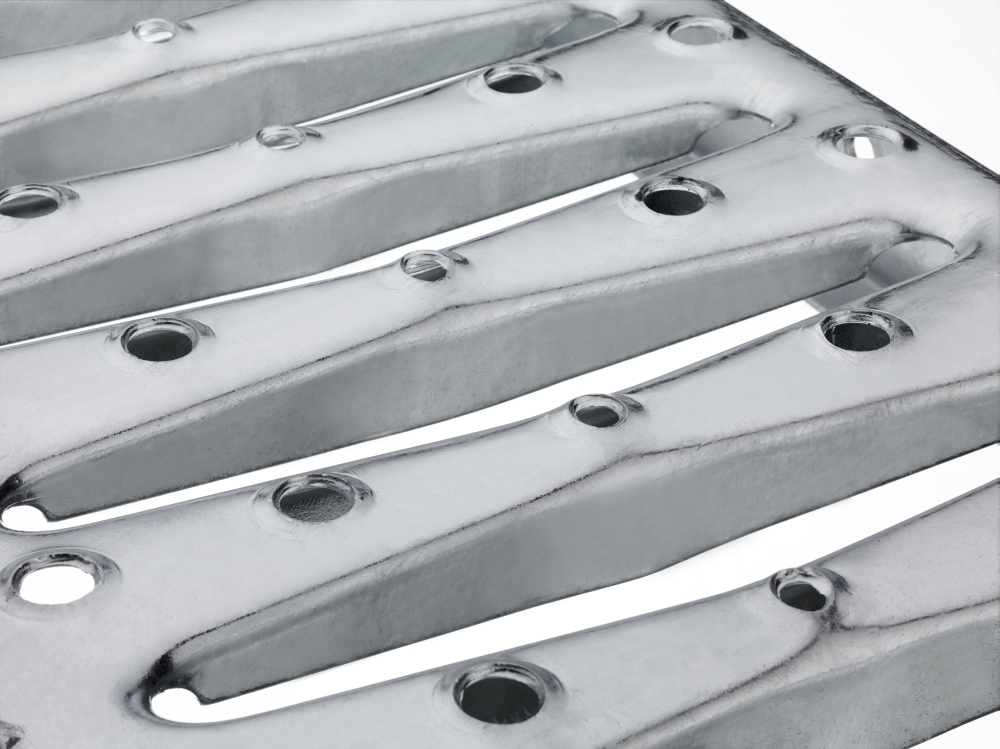

The perforated metal plank type BR “Raute” is particularly suitable for areas of heavy loads on small contact areas due to its rhomb profile with extra high punching (punched holes 2.5 mm).

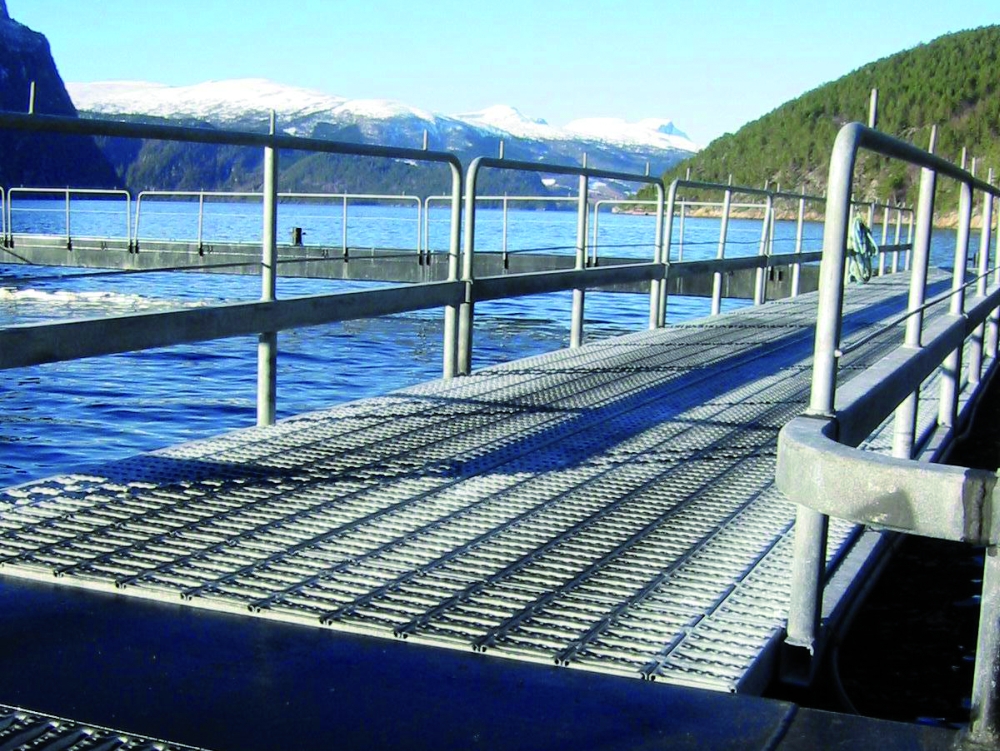

Here, for example, vehicle navigability on ramps or parking areas are to be considered.

Technical details

Material	Steel: S235JR: 1,5 mm, 2,0 mm, 2,5 mm, 3,0 mm Stainless Steel: 1,5 mm, 2,0 mm Aluminium: 2,0 mm, 2,5 mm
Surface treatment	Steel: untreated, hot-dip galvanized, pre-galvanized Stainless Steel:: untreated, pickled Aluminium: untreated, pickled, anodized
Free cross section	Width 150 mm: ~ 23,0% Width 200 mm: ~ 33,6% Width 250 mm: ~ 36,2% Width 300 mm: ~ 42,5%
Width	150 mm, 200 mm, 250 mm, 300 mm (other widths on request)
Height	30 mm, 50 mm, 75 mm, 100 mm, 150 mm (abhängig von Rostbreite und statischer Vorgabe, andere Höhen auf Anfrage)
Ball proof	Ø 35 mm (a 35 mm ball don´t fall through / 35 mm ball proof)
Serration	R11 / V10
Longitudinal grid	125 mm (62,5 mm)
Production lengths	max. 10 m, depending transport limited
