Perfortaded metal plank Type BN-OP5 / OP8

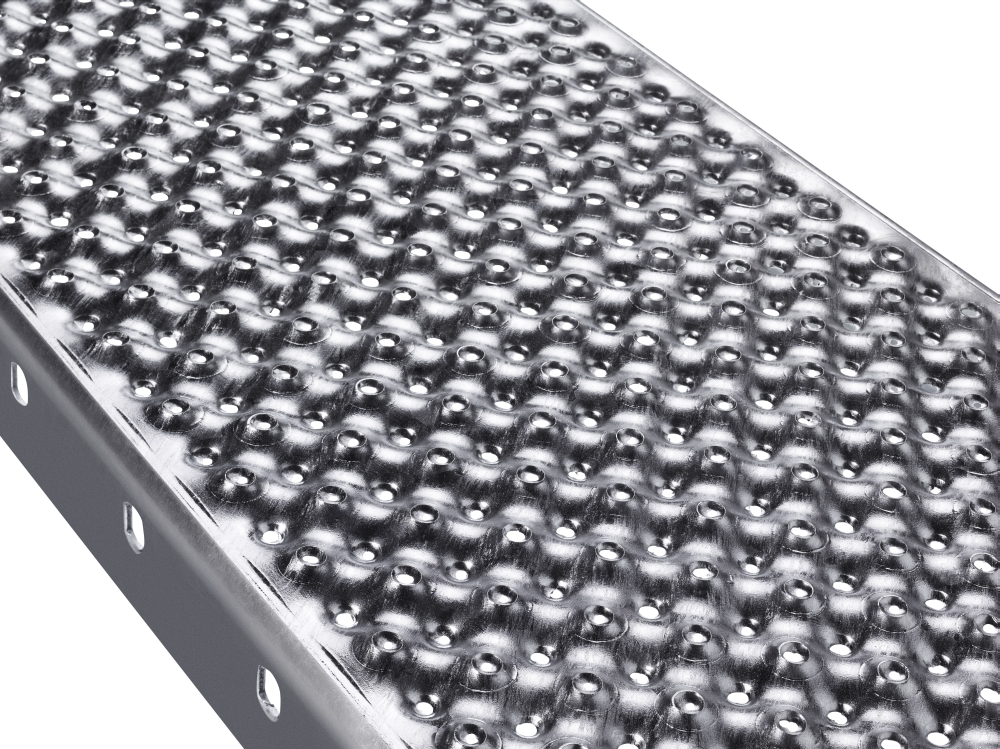

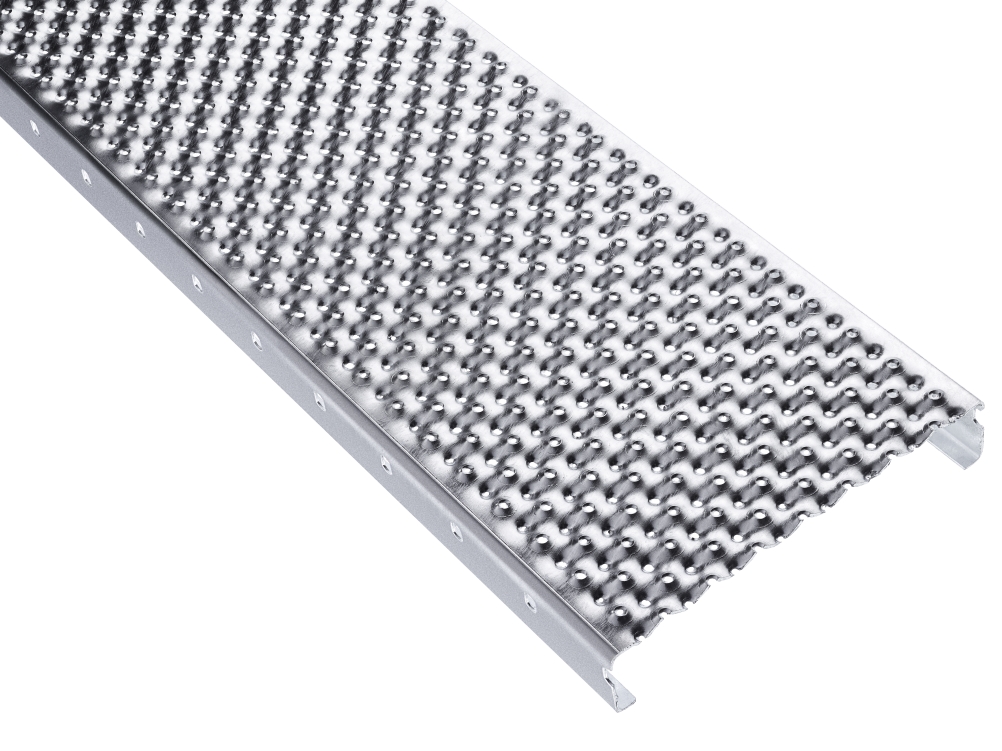

The perforated metal plank type BN-OP5 “Noppe, offen plus, 5mm“ was especially developed for pedestrian areas with „High Heel Proof“ requirements. The bothsided punched holes have a diameter of 5mm.
The punching sequence corresponds to BN-OP7. This type of planking offers high slip resistance and also allows ladies in stiletto heels to walk safely on the gratings. Due to the small hole configuration it is difficult to see through from underneath, which is important in public access areas.
The perforated metal plank type BN-OP8, corresponds to type BN-OP5 in terms of the punching pattern, but have twice the number of holes. The drain holes have a diameter of 8 mm and thereby increase the drainage performance and light and air permeability..
| Material |
Steel S235JR: 2,0 mm Aluminium: 2,0 mm |
| Surface treatment |
Steel: untreated, hot-dip galvanized, pre-galvanized Aluminium: untreated, pickled, anodized |
| Free cross section | bis zu ~ 7,5% |
| Width |
150 mm, 200 mm, 250 mm (other widths on request) |
| Height |
30 mm, 50 mm, 75 mm, 100 mm, 150 mm (corresponing to width and statical specification, other heights on request) |
| Ball proof | Ø 5 mm ( the 5 mm ball won´t fall through / 5 mm ball proof) |
| Rutschhemmung |
R11 / V10 (Steel, hot-dip galvanized IFA 1604165) R13 / V10 (Steel, untreated IFA 1604166) |
| Longitudinal grid | 125 mm (62,5 mm) |
| Production length | max. 10 m, depending on transport limited |
| Material |
Steel S235JR: 2,0 mm, 2,5 mm Stainless Steel: 2,0 mm Aluminium: 2,0 mm, 2,5 mm |
| Surface treatment |
Steel: untreated, hot-dip galvanized, pre-galvanized Stainless Steel: untreated, pickled Aluminium: untreated, pickled, anodized |
| Free cross section | max. ~ 17% |
| Width |
150 mm, 200 mm, 250 mm (material thickness 2,0 mm, 2,5 mm) 300 mm (material thickness 2,5 mm) (other widths on request) |
| Height |
30 mm, 50 mm, 75 mm, 100 mm, 150 mm (corresponing to width and statical specification, other heights on request) |
| Ball proof | Ø 10 mm (the Ø 10 mm ball don´t fall through / 10 mm ball proof) |
| Serration |
R12 / V10 (Steel, hot-dip galvanized; Stainless Steel IFA 1504085) |
| Longitudinal grid | 125 mm (62,5 mm) |
| Production length | max. 10 m, depending transport limited |
Direct screw connection No. 26
Direct screw connection No. 26
This fixing establishes a secure connection to the substructure, consisiting of:
- Countersunk screw M8 x ... ISO 2009 (DIN 965)
- Washer 9 DIN 126
- Nut M8 ISO 7042 (DIN 980), self-locking
Clamp fastening No. 21
Clamp fastening No. 21
Clamp fastening, consisiting of:
- Clamping lower part
- Countersunk screw M8 x 20 ISO 2009 (DIN 965)
- Square nut M8 DIN 557
