Louvres gratings

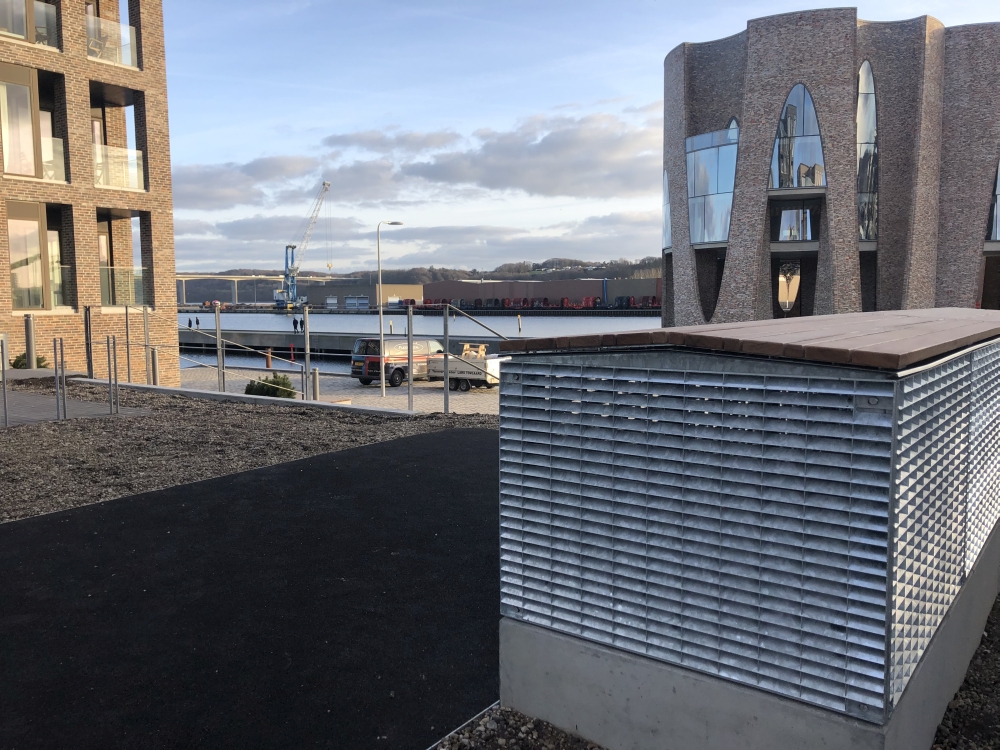

Louvres gratings are used as floorings, ceiling suspensions, facades and cladding element. Due to the diagonally pressed-in cross bars, a certain degree of opacity is achieved. In addition, this grating can also serve as a sun protection, The effect of the sun protection depends on the height of the bearing bars running parallel with the building and their distance from each other.
Made of steel, aluminium or stainless steel, this product enhances every building.
Characteristics

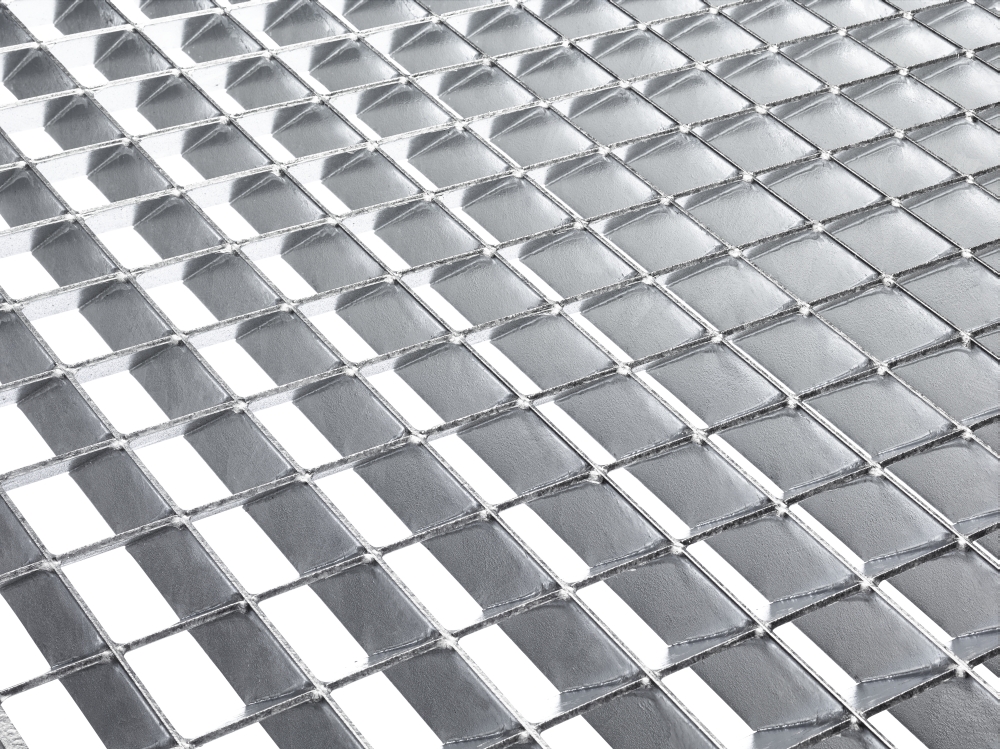

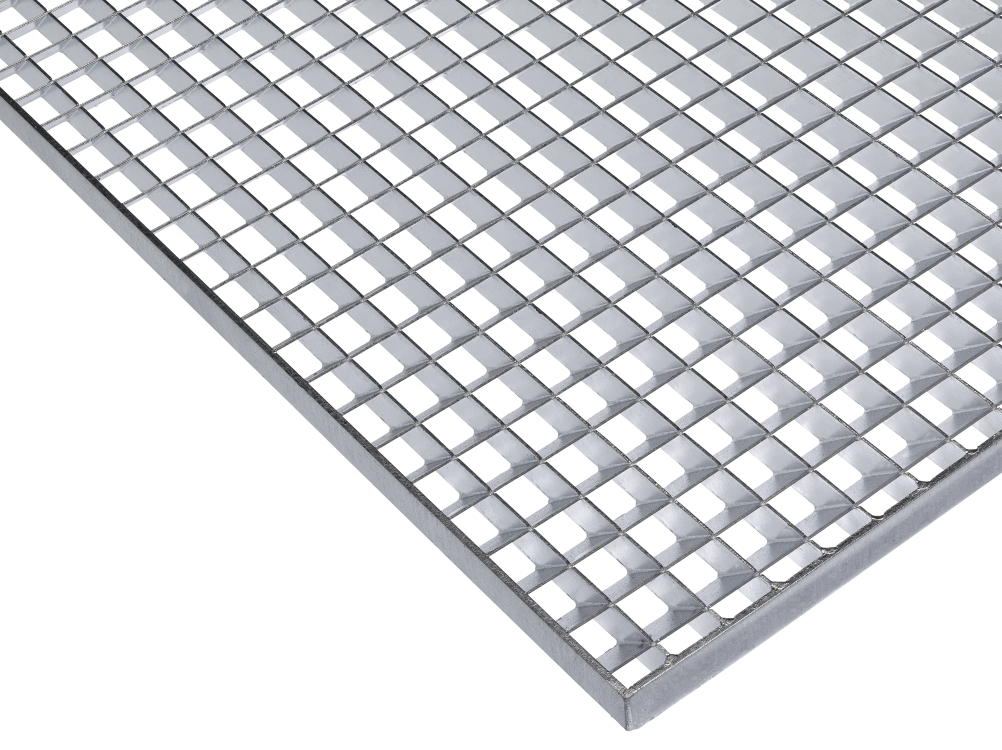

- Pressure-locked gratings with diagonally pressed-in cross bars
- sun protection and opaque
- different materials and surface treatment
- decorative element
All characteistics can be combined. Please contact us to check the producibility of the gratings. Our sales department is always at your disposal.
| Bearing bar pitch | Cross bar pitch | |
|---|---|---|
| 22,22 mm | 22,22 mm | |
| 33,33 mm | 33,33 mm | |
| 44,44 mm | 44,44 mm | |
| 66,66 mm | 66,66 mm | |
| 100,00 mm | 100,00 mm |
| Bearing bar thickness | Bearing bar height | |
|---|---|---|
| 2 mm | 25 mm | |
| 3 mm | 30 mm | |
| 4 mm | 35 mm | |
| 5 mm | 40 mm | |
| 45 mm | ||
| 50 mm |
Types of sun protection gratings
| P 330-66/33-3 Q34045 | |
|---|---|
| P | Pressure-locked gratings |
| 330 | Bearing bar 30 x 3 mm |
| 66/33 | pitch: 66,66 x 33,33 mm |
| 3 | Binding: 30 x 3 mm |
| Q34045 | Cross bar: 40 x 3 mm 45° |
Fixing with perforated plates B270
Fixing with perforated plates B270
Consisting of:
- welded perforated plate
Screw fixing on site.
This fixing material is particularly suitable for vehicle-accessible gratings.
