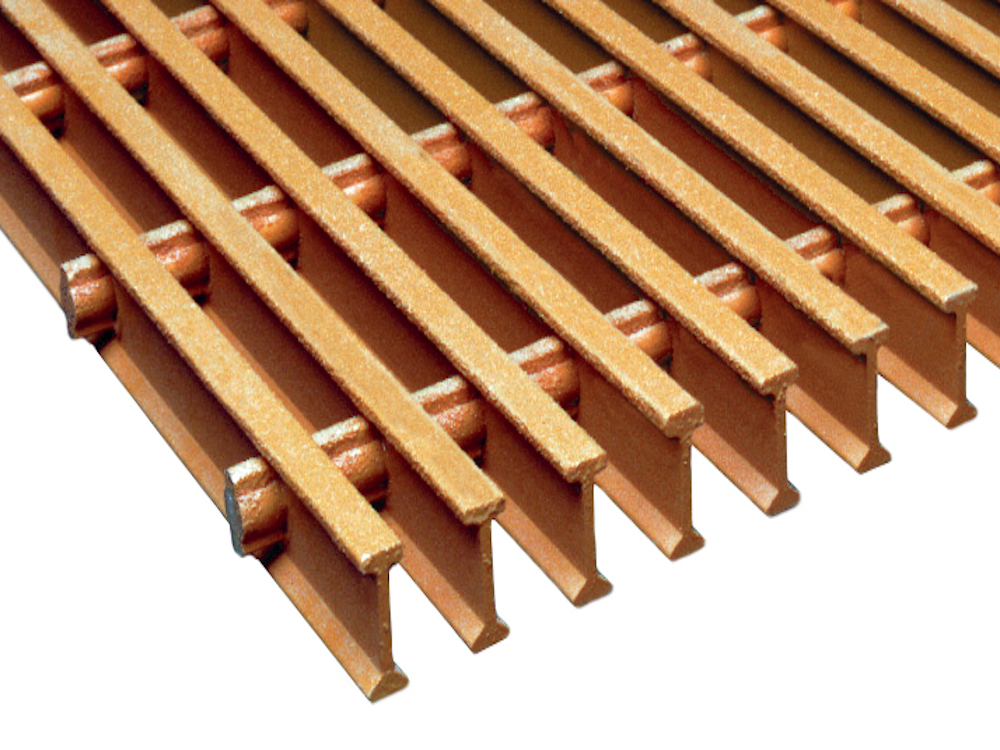

Pultruded GRP-Gratings
Pultruded gratings are a composite of fiberglass reinforcements (fibers and mat) and a thermosetting resin system, produced by the pultrusion process. The profile system convinces with a high strength and stiffness. The relative light gratings with their highly fire resistance characteristics can be used in far-reaching applications. Furthermore, the coated surface provides additional corrosion resistance and UV protection.
Characteristics
- certified several times
- fire safety (nonflammable)
- high chemical resistance
- very low electrical conductivity
- easy installation and processing ofther gratings
- high longevity
- high form stability
These phenolic pultruded grating is worldwide the only GRP grating, which meets the current norm of the US CoastGuard (level 2 (L2)) and the ASTM F3059-15. ASTM F3059 isthe standard specification for glassfiber reinforced polymer(GRP) gratings used in marine construction and shipbuildingand the basis for U.S. Coast Guard (USCG) Type Approval forGRP grating. The ASTM F3059 standard is an enhancementto, and expected replacement for, the existing worldwidestandards for fiberglass gratings (including USCG PFM 2-98).
American Bureau of Shipping
American Bureau of Shiping
Bureau Veritas
Bureau Veritas
ClassNK Nippon Kaiji Kyokai
ClassNK Nippon Kaiji Kyikai
Det Norske Veritas - Germanische Lloyd (DNV-GL)
Det Norske Veritas - Germanischer Lloyd (DNV-GL)
International Maritime Organization (IMO)
International Maritime Organization (IMO)
International Marine Purchasing Association (IMPA)
International Marine Purchasing Association (IMPA)
LLoyds Register
Llodys Register
Example Product designation
| Type: | GFK-P38 I6000 | ||
| P | = | Phenolic resin | |
| 38 | = | Height in mm | |
| I | = | Profile | |
| 6000 | = | open area = | 60 % |
| Model type | Series | Bearing Bar Thickness |
No bars Meter width |
Bearing bar center (Bearing bar) |
Open space (Bearingbar) |
% open area |
ca. weight in kg/sqm |
|---|---|---|---|---|---|---|---|
| GFK-P38 I2000 | I2000 | 38,1 | 52,49 | 19,10 | 3,90 | 20 | 33,60 |
| GFK-P38 I4000 | I4000 | 38,1 | 39,37 | 25,40 | 10,20 | 40 | 25,19 |
| GFK-P38 I4800 | I4800 | 38,1 | 33,90 | 29,50 | 14,25 | 48 | 21,70 |
| GFK-P38 I5500 | I5500 | 38,1 | 29,60 | 33,80 | 18,60 | 55 | 18,89 |
| GFK-P38 I6000 | I6000 | 38,1 | 26,25 | 38,10 | 22,90 | 60 | 16,79 |
| GFK-P45 I3000 | I3000 | 45,0 | 46,08 | 21,70 | 6,50 | 30 | 33,71 |
| GFK-P45 I4000 | I4000 | 45,0 | 39,37 | 25,40 | 10,20 | 40 | 28,80 |
| GFK-P45 I4800 | I4800 | 45,0 | 33,90 | 29,50 | 14,25 | 48 | 24,60 |
| GFK-P45 I5500 | I5500 | 45,0 | 29,60 | 33,80 | 18,60 | 55 | 21,42 |
| GFK-P45 I6000 | I6000 | 45,0 | 26,25 | 38,10 | 22,90 | 60 | 19,04 |
The gratings are partly available from stock, please contact us for further information.
The pultruded gratings can also be supplied with isophtalic or polyester resin, further information on request.
